Coaxial Transmission Devices Lightning Surge Protector With BNC Connector

Name: Coaxial Transmission Devices Lightning Surge Protector With BNC Connector
Brand: TSTLP
Price: 1 USD

Quality Coaxial Transmission Devices Lightning Surge Protector With BNC Connector for sale

Model Number : TS-BNC5

Brand Name : TSTLP

Place of Origin : Guangdong,China

Certification : CE Compliance

MOQ : Negotiable

Price : Negotiable if good quantity

Packaging Details : By standard export box/carton

Delivery Time : Around 7 working days upon receipt of payment

Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead

Supply Ability : 2000 sets/month

Normal Voltage : 5.0V

Uc : 8V

Normal Discharge Current : 2500A

Up : ≤ 15 V

F(G) : 300MHz

Application : coaxial transmission devices

Contact Now

CCTV video surge protector with BNC connector for coaxial transmission devices

TS-BNC5 cctv video surge protector is designed according to IEC 61643-21; GB 18802.21 for protecting coaxial cable transmission devices, surveillance video signal transmission etc. from interruption caused by surge current.

Coaxial Transmission Devices Lightning Surge Protector With BNC Connector

Technical Parameter S1

Model	TS-BNC5	TS-BNC8
Nominal voltage	5V-	8V/+1.5v
Rated voltage (max. continuous voltage)	8V-	-10V/+2.1V
Lightning Impulse Current (10/350)	0.5KA	0.5KA
Nominal discharge current (8/20)	2.5kA(line-shield)	2.5kA(line-shield)
Nominal discharge current (8/20)	5kA(shield-PG)	5kA(shield-PG)
Max. discharge current (8/20)	5kA(line-shield)	5kA(line-shield)
Max. discharge current (8/20)	10kA(shield-PG)	10kA(shield-PG)
Voltage protection level at In	≤25V(line-shield)	≤35V(line-shield)
Voltage protection level at 1kV/µs	≤15V(line-shield)	≤15V(line-shield)
Voltage protection level at 1kV/µs	≤600V(line/shield-PG)	≤600V(line/shield-PG)
Response time	≤1ns (line- shield)	≤1ns (line- shield)
Response time	≤100ns (shield-PG)	≤100ns (shield-PG)
Bandwidth	300MHz	300MHz
Series impedance per line	10Ω	1Ω
Max. data transmission rates	16Mbits/s	10Mbits/s

Technical Parameter S2

Main Character

Video surge protector of good discharge capacity, low voltage protection level
Quick response minimize interruption
BNC connection for easy installation
High-Quality Core components

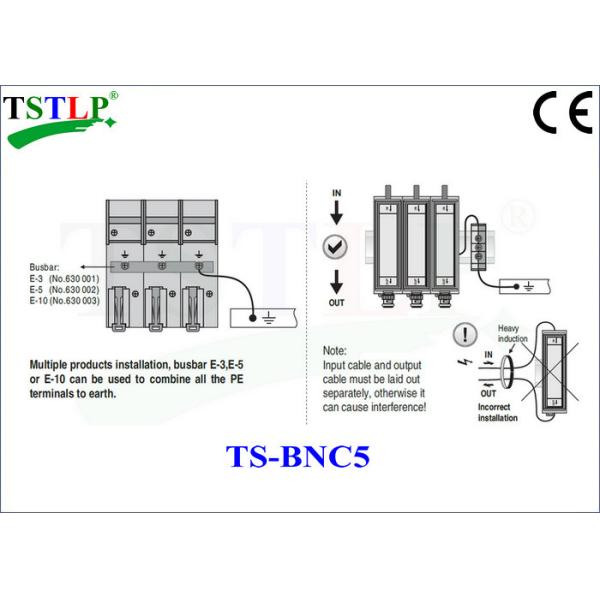

Installation Diagram

Coaxial Transmission Devices Lightning Surge Protector With BNC Connector

PDF Catalog Download - TS-BNC5 & TS-BNC8 SPD for C...

PDF Catalog Download - TS-8-16-24 BNC5 SPD.pdf
